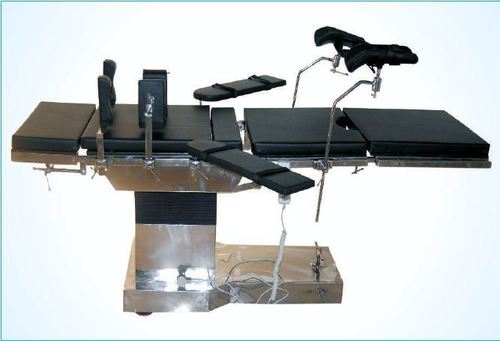

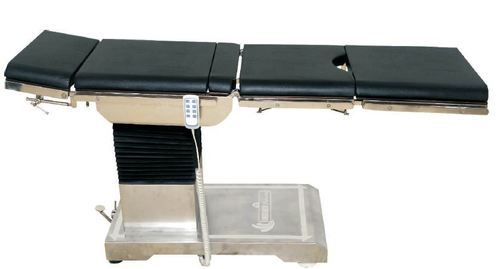

Electro Hydraulic Operating Table

Product Description

Electro Hydraulic Operating Table

Features:

(a) Five Section Table Top gives easy for various surgical positions.

(b) Base & Column are covered with 304 Stainless Steel to ensure high durability & hygiene for the operation room.

(c) Led Section & Head Section interchangeable.

(d) Radio - translucent to provide easy convenience for X-ray procedures.

(e) All Positions operated by remote control as well as manually.

(d) Additional control panel on central column.

Technical Specification

Overall Length of the table - 1950mm

Overall width of the table -  530mm

Minimum Height of the table - 730mm

 Maximum Height of the table - 1030mm

TB/RTB- 22 Degree

Back Section Adjustment - 80/20 Degree

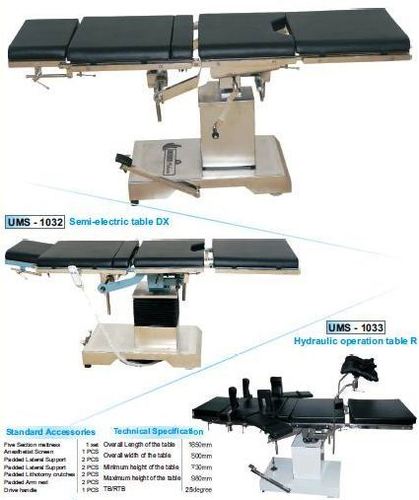

Standard Accessories

 Five Section Mattress -1 set

Anesthetist Screen - 1 Pcs

Padded Lateral Support -  2 Pcs

Padded Lithotomy Crutches- 2 Pcs

Padded Arm Set-2 Pcs

 Drive Handle- 1 Pcs

        Remote & Table Mounted Mechanism for functioning or

        controlling the table movements

Remote controlled positions Trendelenburg / reverse

        Trendelenburg, lateral tilt, longitudinal shift, height

        adjustment, ant

        flex and flex position and back plate up / down

C- Arm Compatible

Range of Table top Height is 635MM to 1035MM

Provision of X-Ray Cassette Channel is available

Head Section UP/Down Angle, range is 45 to 90 Deg

Leg Section Up & Down Range is 0  - 90 Deg

Table Top longitudinal sliding range is

Patient Weight capacity is 150-270 KGS

Kidney Bridge Required is available

Split leg section ,detachable-1 Pair

        Battery Backup Provided

Battery backup of operating table is 3 or more than 3 hrs.

        Foot pump is available

Both arm board should have up & down and rotation function

1 No of horizontal attachment

Bariatric table extensions only for Bariatric procedure 2 inch Full set

Bariatric table extension only for Bariatric procedures-4 inch full set

Restraint body strap -1 Pair available

Number of Remote Available -1 No

Table Operation,Universal,Complete,Electro-Hydraulic with remote control and manual override in case of                   electric failure is available

Base & Column are covered with 304 Stainless Steel to ensure high

Five Section Table Top gives easy for various surgical positions.

Led Section & Head Section interchangeable.

Radio - translucent to provide easy convenience for X-ray procedures.

All Positions operated by remote control as well as manually.

Additional control panel on central column.
